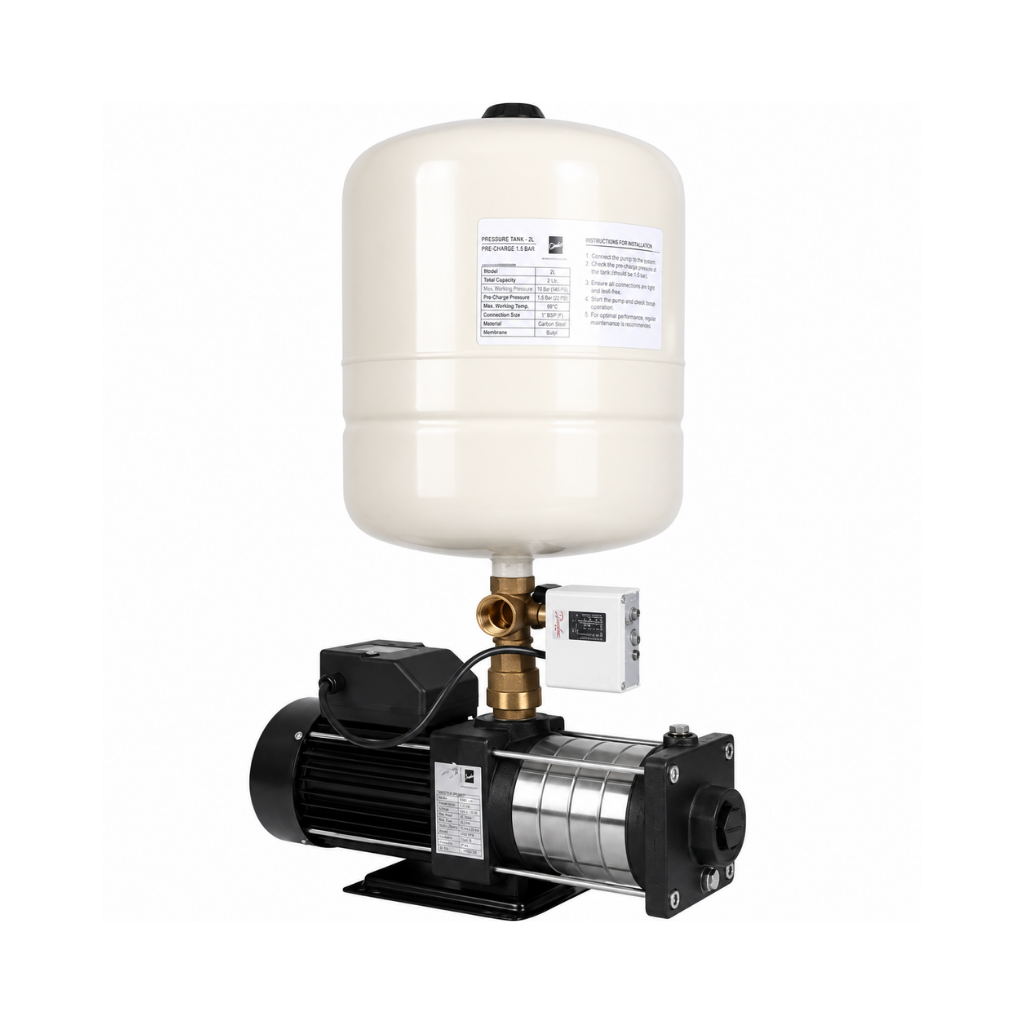

Kirloskar CPBS-73624V – 1HP Pressure Booster Pump with 24 Liter Tank

The Kirloskar 1 HP pressure booster pump is a reliable and efficient solution designed to enhance water pressure in various applications. Ideal for residential and light commercial use, this pump ensures a consistent and strong water flow, making it perfect for boosting pressure in showers, faucets, and irrigation systems.

• Compact Reliable and Silent : Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations.
• TOP – Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
• Diaphragm Type Pressure Tank : Diaphragm type pressure tank made from high grade engineering material
• Reliable & Durable Components : Reliable and durable peripheral parts such as Pressure Switch, Standardized Size of 5 Way Connector, and Italian make NRV and SS hose pipe.
• Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.

• Specifications

  • Brand: Kirloskar
  • Power : 1 hp
  • Weight (Approx.) : 23.20 kg
  • Flow Rate : 140 lpm
  • Head : 41 meter
  • Model No. : CPBS-73624V
  • Product Type : Vertical Pressure Booster Pump
  • Power Source : Corded Electric
  • Wattage : 0.75 kW
  • Power Supply : 220V, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Head Range : 20 to 135 Feet (6 – 41 meters)
  • No. of Outlet  : 7 per Taps
  • Rated Current : 7.5 Amp.
  • Pressure Range : 2.2 – 3.6 Kg/Cm²
  • No. of Stages : 4
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  • Tank Capacity : 24 Liters
  • Winding Material : Copper Winding
  • Discharge Rate : 20-140 LPM (1200-8400 LPH)
